Smart Home Mini radio receiver dimmable
Tax included
In stock
5-year full warranty
We are confident in our products and therefore offer a full 5-year guarantee. If there is a defect, we will replace the item.
Thanks to its compact size, our mini radio receiver fits into any flush-mounted box or can be hidden in almost any light. Up to 10 of our switches can be registered to the mini receiver. An existing, wired button can also be integrated via contact S1. In addition, the receiver is Smart Home compatible and can be operated via the tuya app or a standard voice control. Dimmable lights (based on TRIAC) can be dimmed with this receiver.

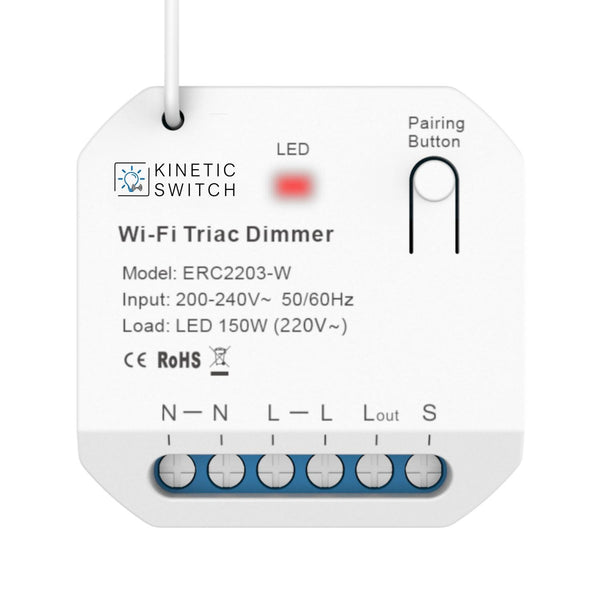

Version: ERC2203-W / 1-channel receiver
Functions: on/off/dimming/Smart Home capable
Suitable for: all kinetic-switch radio switches
Fuse: 5A / 230V
Power: up to 500 watts LED
Protection class: IP20
Memory: 10 switch or button information per channel
Range: Indoor 30m, Outdoor 80m
Standby power consumption: < 0.15W
Voltage range: AC100V - 240V; 50/60Hz
Temperature range: -20 ºC / +55ºC
Dimensions: L44mm x W44mm x H22mm
Weight: 35g
Certification: CE & RoHS
